Material Summary
Advanced structural porcelains, as a result of their special crystal structure and chemical bond qualities, reveal performance advantages that steels and polymer products can not match in extreme atmospheres. Alumina (Al Two O THREE), zirconium oxide (ZrO TWO), silicon carbide (SiC) and silicon nitride (Si ₃ N ₄) are the 4 significant mainstream design porcelains, and there are important differences in their microstructures: Al ₂ O three comes from the hexagonal crystal system and counts on solid ionic bonds; ZrO two has 3 crystal forms: monoclinic (m), tetragonal (t) and cubic (c), and gets special mechanical residential properties via stage adjustment toughening mechanism; SiC and Si Three N ₄ are non-oxide ceramics with covalent bonds as the primary component, and have more powerful chemical security. These structural differences directly result in significant distinctions in the prep work process, physical residential or commercial properties and design applications of the 4. This post will systematically examine the preparation-structure-performance relationship of these 4 ceramics from the viewpoint of materials scientific research, and explore their prospects for commercial application.
(Alumina Ceramic)
Prep work process and microstructure control
In terms of preparation procedure, the 4 ceramics reveal apparent distinctions in technological paths. Alumina ceramics utilize a fairly typical sintering process, normally using α-Al two O five powder with a purity of more than 99.5%, and sintering at 1600-1800 ° C after completely dry pushing. The key to its microstructure control is to inhibit unusual grain growth, and 0.1-0.5 wt% MgO is generally added as a grain boundary diffusion prevention. Zirconia ceramics need to present stabilizers such as 3mol% Y ₂ O two to keep the metastable tetragonal phase (t-ZrO two), and use low-temperature sintering at 1450-1550 ° C to avoid extreme grain growth. The core process difficulty lies in accurately controlling the t → m stage change temperature home window (Ms factor). Because silicon carbide has a covalent bond ratio of approximately 88%, solid-state sintering needs a heat of greater than 2100 ° C and relies upon sintering aids such as B-C-Al to create a fluid phase. The reaction sintering method (RBSC) can achieve densification at 1400 ° C by penetrating Si+C preforms with silicon thaw, but 5-15% complimentary Si will stay. The prep work of silicon nitride is one of the most complex, usually making use of GPS (gas pressure sintering) or HIP (hot isostatic pushing) procedures, adding Y ₂ O THREE-Al two O three series sintering aids to create an intercrystalline glass phase, and warmth therapy after sintering to take shape the glass phase can significantly enhance high-temperature performance.

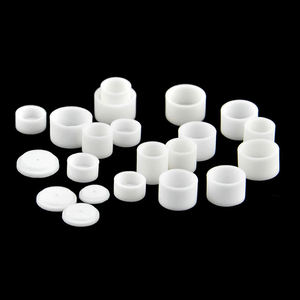

( Zirconia Ceramic)
Comparison of mechanical properties and enhancing system
Mechanical residential or commercial properties are the core examination indicators of structural porcelains. The 4 kinds of products show completely different fortifying systems:

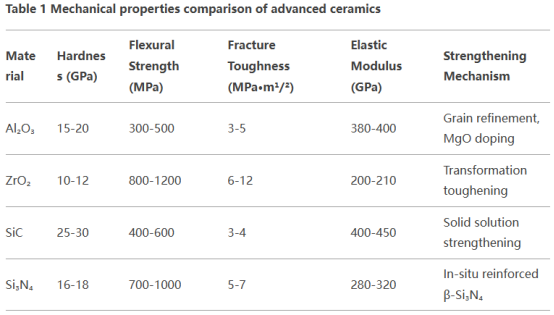

( Mechanical properties comparison of advanced ceramics)
Alumina mainly counts on great grain conditioning. When the grain dimension is minimized from 10μm to 1μm, the stamina can be boosted by 2-3 times. The excellent sturdiness of zirconia comes from the stress-induced phase makeover device. The stress and anxiety field at the fracture tip triggers the t → m phase transformation accompanied by a 4% volume development, causing a compressive stress and anxiety securing impact. Silicon carbide can enhance the grain limit bonding toughness via solid option of components such as Al-N-B, while the rod-shaped β-Si ₃ N four grains of silicon nitride can produce a pull-out result similar to fiber toughening. Break deflection and linking contribute to the improvement of toughness. It deserves keeping in mind that by building multiphase porcelains such as ZrO TWO-Si Four N ₄ or SiC-Al Two O ₃, a range of toughening mechanisms can be worked with to make KIC surpass 15MPa · m 1ST/ TWO.
Thermophysical homes and high-temperature habits
High-temperature security is the vital benefit of structural ceramics that distinguishes them from traditional products:

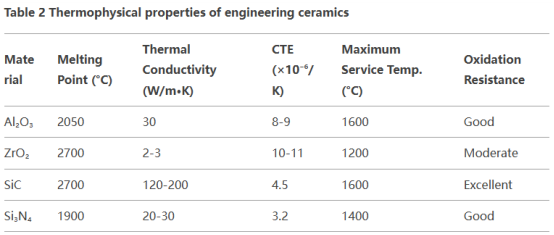

(Thermophysical properties of engineering ceramics)
Silicon carbide shows the most effective thermal management performance, with a thermal conductivity of as much as 170W/m · K(equivalent to light weight aluminum alloy), which results from its straightforward Si-C tetrahedral framework and high phonon propagation price. The low thermal growth coefficient of silicon nitride (3.2 × 10 ⁻⁶/ K) makes it have excellent thermal shock resistance, and the essential ΔT worth can reach 800 ° C, which is specifically suitable for duplicated thermal biking environments. Although zirconium oxide has the greatest melting point, the softening of the grain limit glass stage at heat will certainly trigger a sharp drop in stamina. By adopting nano-composite modern technology, it can be increased to 1500 ° C and still keep 500MPa toughness. Alumina will experience grain boundary slip over 1000 ° C, and the addition of nano ZrO two can form a pinning impact to inhibit high-temperature creep.
Chemical stability and deterioration habits
In a corrosive atmosphere, the 4 types of ceramics show considerably various failure mechanisms. Alumina will certainly dissolve on the surface in strong acid (pH <2) and strong alkali (pH > 12) services, and the deterioration rate boosts greatly with enhancing temperature, reaching 1mm/year in boiling concentrated hydrochloric acid. Zirconia has good resistance to not natural acids, yet will certainly undergo reduced temperature degradation (LTD) in water vapor settings over 300 ° C, and the t → m stage change will certainly result in the formation of a microscopic split network. The SiO ₂ safety layer formed on the surface of silicon carbide gives it excellent oxidation resistance listed below 1200 ° C, however soluble silicates will be produced in molten alkali steel settings. The deterioration actions of silicon nitride is anisotropic, and the corrosion price along the c-axis is 3-5 times that of the a-axis. NH Three and Si(OH)₄ will be created in high-temperature and high-pressure water vapor, resulting in material cleavage. By enhancing the structure, such as preparing O’-SiAlON ceramics, the alkali deterioration resistance can be raised by greater than 10 times.

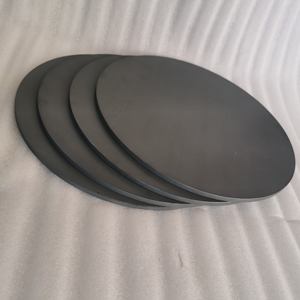

( Silicon Carbide Disc)
Common Engineering Applications and Case Research
In the aerospace area, NASA uses reaction-sintered SiC for the leading side components of the X-43A hypersonic aircraft, which can endure 1700 ° C wind resistant home heating. GE Aviation utilizes HIP-Si five N four to produce turbine rotor blades, which is 60% lighter than nickel-based alloys and allows greater operating temperatures. In the clinical field, the fracture stamina of 3Y-TZP zirconia all-ceramic crowns has actually reached 1400MPa, and the life span can be included greater than 15 years with surface gradient nano-processing. In the semiconductor sector, high-purity Al two O three porcelains (99.99%) are utilized as tooth cavity products for wafer etching tools, and the plasma rust rate is <0.1μm/hour. The SiC-Al₂O₃ composite armor developed by Kyocera in Japan can achieve a V50 ballistic limit of 1800m/s, which is 30% thinner than traditional Al₂O₃ armor.
Technical challenges and development trends
The main technical bottlenecks currently faced include: long-term aging of zirconia (strength decay of 30-50% after 10 years), sintering deformation control of large-size SiC ceramics (warpage of > 500mm elements < 0.1 mm ), and high production expense of silicon nitride(aerospace-grade HIP-Si six N ₄ gets to $ 2000/kg). The frontier growth instructions are concentrated on: one Bionic framework style(such as shell layered framework to raise toughness by 5 times); two Ultra-high temperature sintering modern technology( such as trigger plasma sintering can attain densification within 10 mins); four Intelligent self-healing ceramics (including low-temperature eutectic phase can self-heal fractures at 800 ° C); ④ Additive production modern technology (photocuring 3D printing accuracy has actually reached ± 25μm).

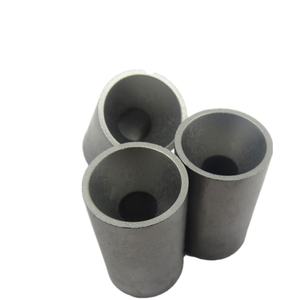

( Silicon Nitride Ceramics Tube)
Future development fads
In a detailed comparison, alumina will still dominate the conventional ceramic market with its cost benefit, zirconia is irreplaceable in the biomedical field, silicon carbide is the preferred product for extreme environments, and silicon nitride has terrific prospective in the area of premium equipment. In the next 5-10 years, via the combination of multi-scale architectural guideline and smart production technology, the efficiency limits of design porcelains are anticipated to accomplish new advancements: as an example, the style of nano-layered SiC/C ceramics can achieve sturdiness of 15MPa · m ¹/ TWO, and the thermal conductivity of graphene-modified Al two O four can be boosted to 65W/m · K. With the innovation of the “twin carbon” strategy, the application scale of these high-performance porcelains in brand-new energy (fuel cell diaphragms, hydrogen storage products), eco-friendly production (wear-resistant components life raised by 3-5 times) and other fields is anticipated to preserve a typical annual development price of greater than 12%.
